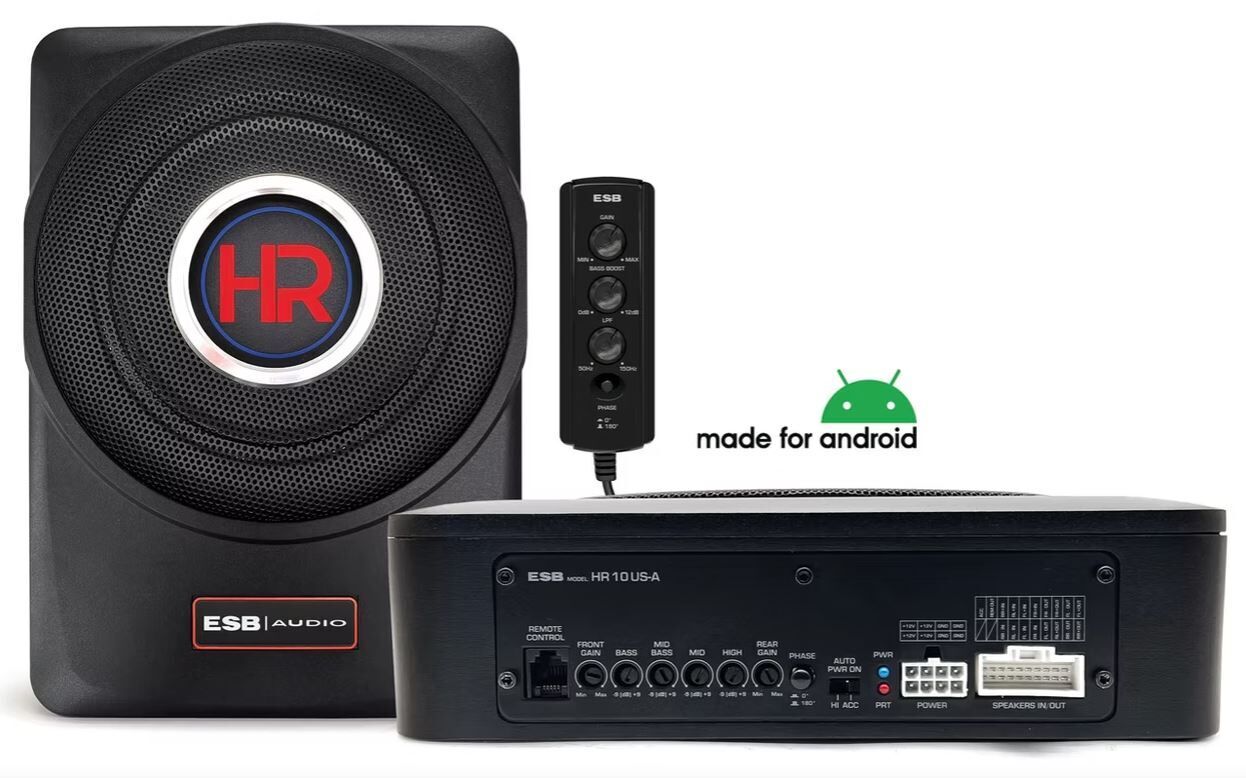

ESB Harmony HR10US-A 10" Active Underseat Subwoofer & 5-Channel Amplifier

Transform your factory audio system with a single compact upgrade. The ESB Harmony HR10US-A combines a powerful 10-inch active underseat subwoofer with a built-in 5-channel amplifier, delivering stronger bass, increased speaker power, and enhanced sound quality from one discreet package.

Designed specifically for modern Android-based vehicle audio systems, the HR10US-A provides a simple Plug & Play solution that dramatically improves overall system performance without requiring bulky amplifiers or large subwoofer enclosures.

At its core is a high-performance 10-inch subwoofer powered by a dedicated 200W RMS amplifier channel, delivering deep, controlled bass that adds impact and realism to every genre of music. In addition, four separate amplifier channels provide 35W RMS per channel to power your front and rear speakers, creating a complete audio upgrade from a single compact chassis.

The built-in 4-band equaliser allows precise adjustment of Bass, Mid-Bass, Midrange and Treble frequencies, giving you far greater control over your vehicle's sound than most traditional underseat subwoofers.

Its slim aluminium enclosure is designed to fit neatly beneath most vehicle seats, preserving valuable cabin and cargo space while providing excellent heat dissipation and long-term reliability.

Whether you're upgrading a factory Android head unit or looking for a simple all-in-one audio solution, the HR10US-A delivers impressive power, tuning flexibility and installation convenience in one compact package.

Features

• 10" Active Underseat Subwoofer
• Integrated 5-Channel Amplifier
• Android Plug & Play Connectivity
• 4 x 35W + 1 x 200W RMS Output
• 4 x 70W + 1 x 400W Maximum Power
• Compact underseat installation
• Built-in 4-Band Equaliser
• Adjustable Gain Control
• Variable Low-Pass Filter
• Adjustable Bass Boost
• Selectable Phase Control
• Auto Turn-On Function
• Wired Remote Control Included
• Durable Aluminium Enclosure
• Ideal for OEM and Android audio system upgrades

Amplifier Power

• Front Channels: 4 x 35W RMS
• Subwoofer Channel: 200W RMS
• Total RMS Output: 340W RMS

Maximum Power

• Front Channels: 4 x 70W Max
• Subwoofer Channel: 400W Max
• Total Maximum Power: 680W Max

Sound Tuning Controls

• 4-Band EQ Adjustment
  • Bass
  • Mid-Bass
  • Midrange
  • Treble
• EQ Range: ±9dB
• Variable Bass Boost: 0 – 12dB
• Low-Pass Filter: 50Hz – 150Hz
• Phase Control: 0° – 180°
• Adjustable Input Gain

Specifications

• Amplifier Class: Class AB
• Frequency Response: 20Hz – 22kHz
• Signal-to-Noise Ratio: 91dB
• Total Harmonic Distortion: 0.05%
• Sensitivity: 92dB
• Output Impedance: 2 Ohm
• Operating Voltage: 10V – 16V DC
• Input Gain Range: 0.15V – 6V
• High-Level Input Sensitivity: 0.2V – 11V
• Magnet Type: Ferrite
• Enclosure Material: Aluminium
• Dimensions: 245mm x 345mm x 77.5mm

Perfect For

• Android head unit upgrades
• Factory audio enhancement
• Vehicles with limited installation space
• Customers wanting more bass and louder speakers
• Daily drivers, SUVs, utes and 4WDs
• All-in-one audio system upgrades

What's Included

• ESB Harmony HR10US-A Active Underseat Subwoofer
• Integrated 5-Channel Amplifier
• Android Plug & Play Harness
• Wired Remote Bass Controller
• Installation Documentation

Why Choose the HR10US-A?

Unlike a traditional powered underseat subwoofer that only adds bass, the HR10US-A also amplifies your vehicle's speakers. This creates a complete audio upgrade with stronger bass, clearer vocals, improved dynamics and greater overall volume from a single compact unit.
