Eton MA1 Monoblock Class D Power Amplifier
Eton MA1 Monoblock Class D Power Amplifier
Couldn't load pickup availability
ETON MA 1 – 1-Channel Monoblock Class-D Power Amplifier
The ETON MA 1 is a newly developed Advanced Class-D monoblock that punches way above its footprint. Measuring just 270 x 160 x 51mm, it slips into tight install spaces without sacrificing a single watt — delivering up to 1510W RMS at 1Ω from a housing that barely takes up any room. If you're building a serious subwoofer system and need clean, stable, high-output power with zero drama, this is it.

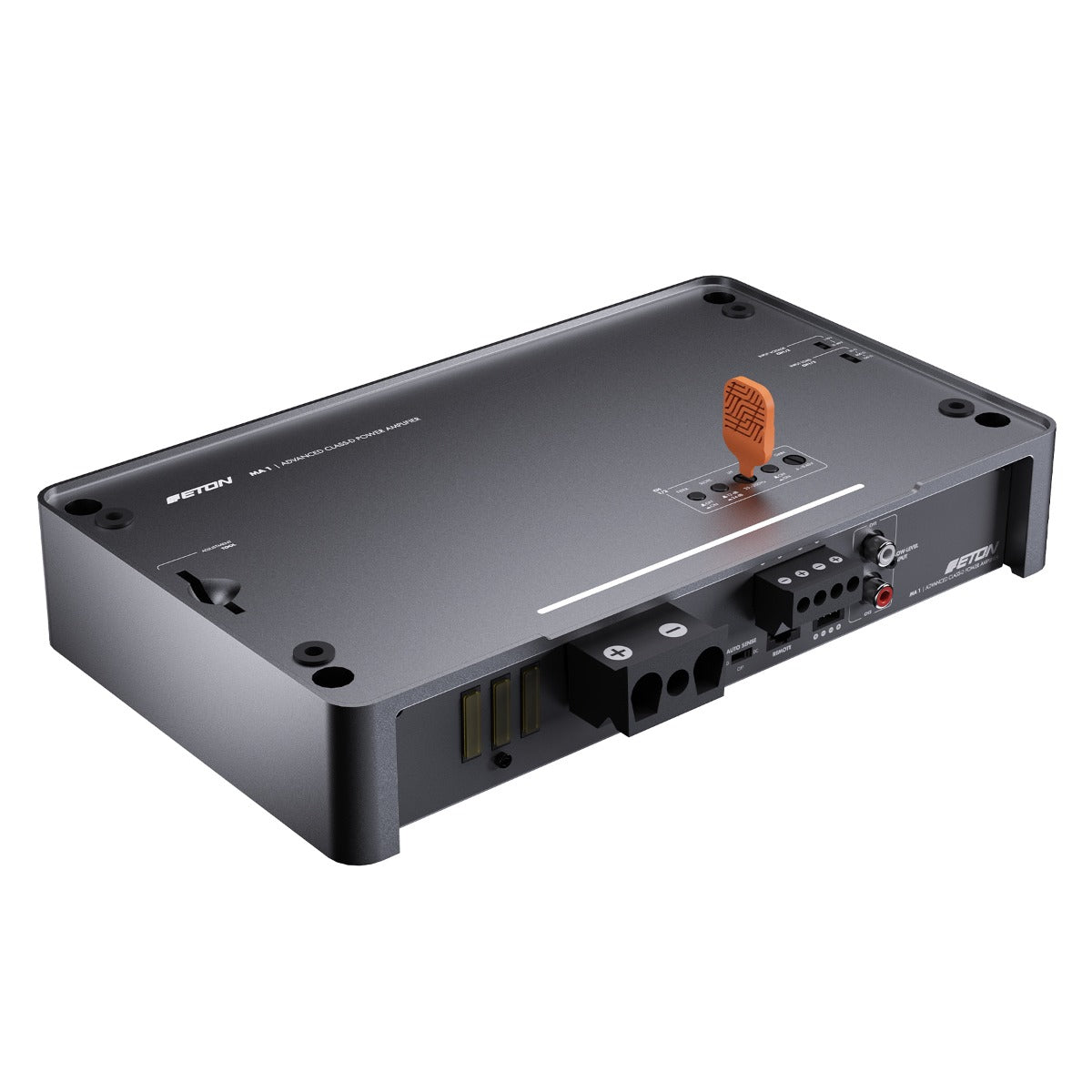

Built in a premium gunmetal die-cast aluminium housing with a removable cover, integrated adjustment tool, LED status lightbar, and stacking capability — the MA 1 is engineered to the same German standards ETON is known for across their entire lineup.
⚡ Power Output
| Load | RMS Power |
|---|---|
| 4 Ω | 1 x 690 W RMS |
| 2 Ω | 1 x 1120 W RMS |
| 1 Ω | 1 x 1510 W RMS |
Pair with the ETON MW 12 (2x2Ω DVC) wired to 1Ω for maximum output — a natural match.
🔊 Key Features
- Advanced Class-D amplifier technology — highly efficient, runs cool even at high output
- Ultra-low THD+N: 0.003% @ 100W / 60Hz — exceptionally clean bass reproduction
- Signal-to-noise ratio: 96.5dB — dead quiet background, pure bass signal
- Damping factor @ 4Ω: >340 — tight, controlled subwoofer cone movement
- Active low-pass filter: 25–250Hz, adjustable slope 12dB or 24dB/Oct
- Subsonic filter: 30Hz — protects your sub from infrasonic frequencies
- Auto Sense-On: SIG / DC — works with factory head units and start-stop vehicles
- 2x High Level inputs + 2x Low Level (RCA) inputs — maximum install flexibility
- Adjustable high-level input voltage: 1–15V or 15–40V
- Adjustable high-level input resistance: 10 / 150 / 600Ω
- Adjustable gain: 0.45V – 6V
- Removable power and audio signal plugs — clean, professional wiring
- LED status lightbar — signal, protect, and power status at a glance

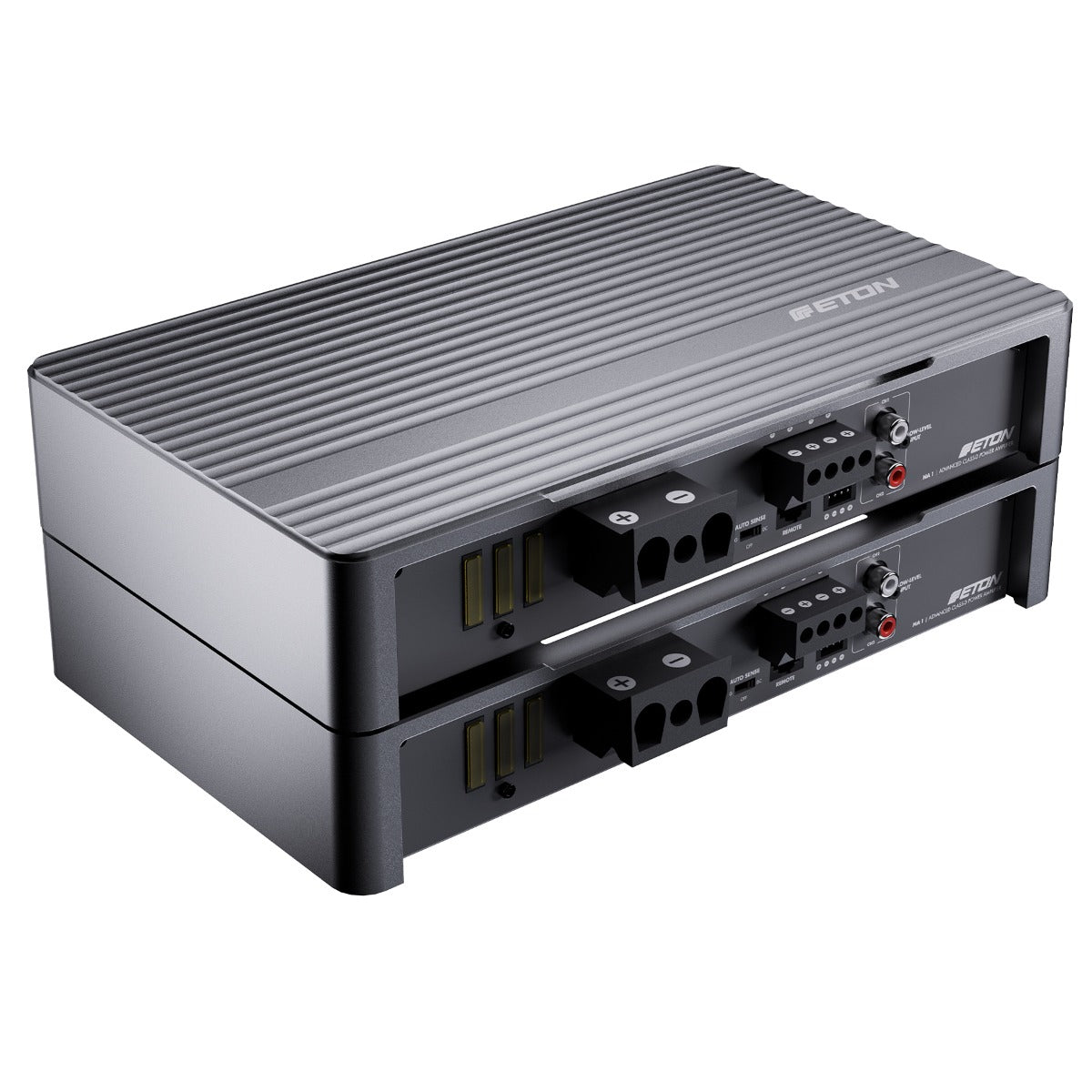

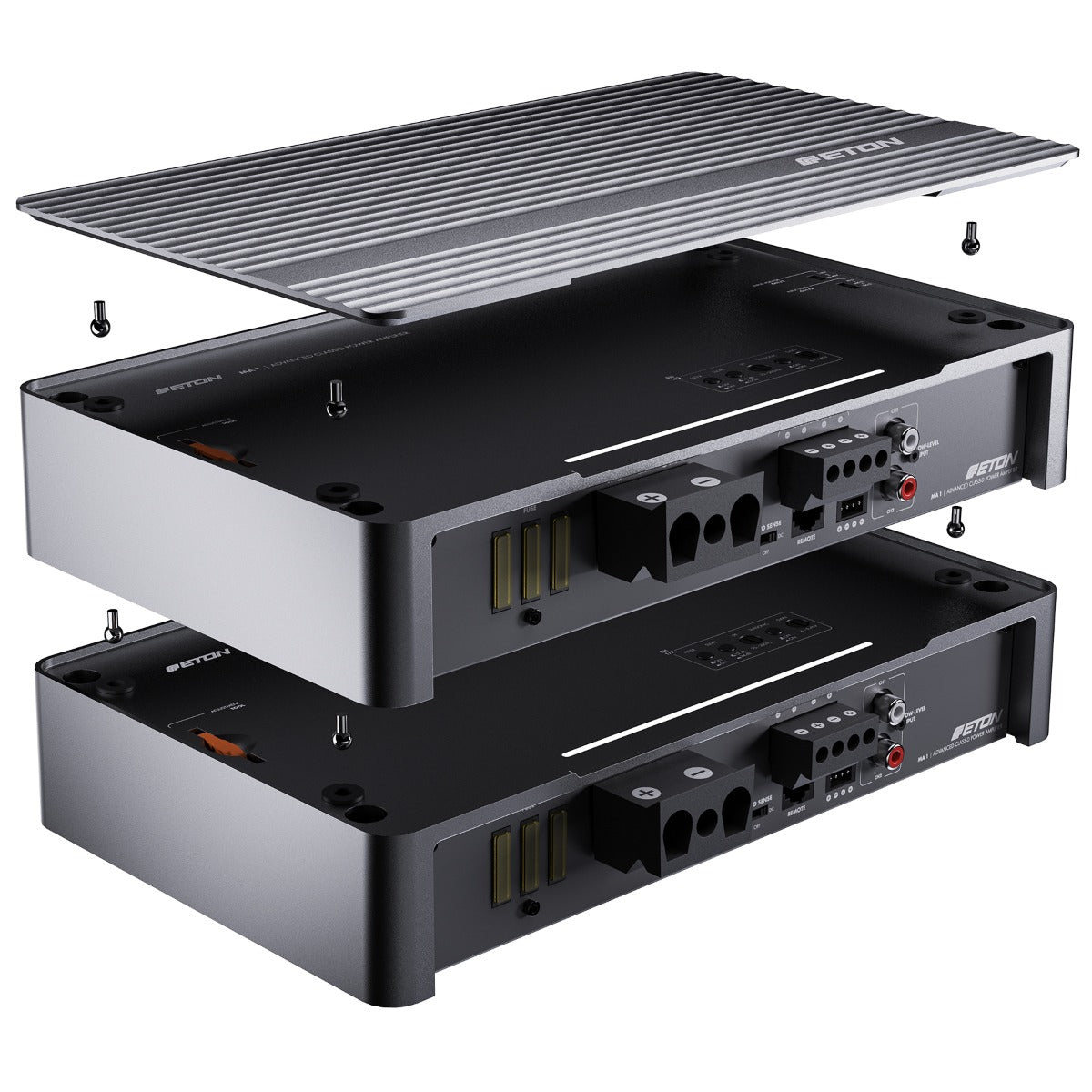

- Stacking function — run multiple MA 1s side by side cleanly
- Hidden blind-hole mounting OR removable adjustable mounting feet
- Removable gunmetal aluminium cover — ETON logo rotatable 180° for flexible install orientation
- Integrated adjustment tool — no need to dig for a screwdriver
- Includes: Level remote control, high-level cable adapter, mounting feet, fixing screws
- Engineered in Germany
📋 Specifications
| Specification | Value |
|---|---|
| Channels | 1 (Monoblock) |
| Amplifier Technology | Advanced Class-D |
| Power @ 4Ω | 690W RMS |
| Power @ 2Ω | 1120W RMS |
| Power @ 1Ω | 1510W RMS |
| THD+N | 0.003% @ 100W / 60Hz |
| Signal-to-Noise Ratio | 96.5 dB |
| Damping Factor @ 4Ω | >340 |
| Low-Pass Filter | 25–250Hz | 12dB or 24dB/Oct |
| Subsonic Filter | 30Hz |
| Inputs | 2x High Level, 2x Low Level (RCA) |
| High Level Input Voltage | 1–15V or 15–40V (selectable) |
| High Level Input Resistance | 10 / 150 / 600Ω (selectable) |
| Gain Range | 0.45V – 6V |
| Auto Sense-On | SIG / DC (start-stop compatible) |
| DSP | No |
| Dimensions (L x W x H) | 270 x 160 x 51 mm |
| Housing | Die-cast aluminium, gunmetal finish |
| Level Remote | Included (wired) |
| Origin | Engineered in Germany |
💡 Who Is the MA 1 Built For?
The MA 1 is designed for anyone running a dedicated subwoofer channel who refuses to compromise on quality. The 1Ω stability at 1510W RMS makes it perfect for driving a dual voice coil sub like the ETON MW 12 wired down to 1Ω for maximum output. The high-level inputs mean it plays nicely with factory head units — no aftermarket HU required. And with start-stop vehicle compatibility, it's fit for modern 4x4s, Navara, HiLux, Prado — whatever you're running.
At just 51mm tall, it tucks away under seats, in custom enclosures, or behind panels without eating into your boot space. Clean, compact, powerful — this is what a German-engineered monoblock looks like.
